Best CNC Machines for Small Shops and Garages: Six Options Compared

Introduction

If you’re setting up a small shop or garage and considering a CNC machine, the market now offers several compelling options across different sizes and budgets. Whether you have minimal floor space or room for a larger system, there are machines designed to fit your needs without requiring industrial-scale infrastructure. This guide covers six machines from three manufacturers that stand out for their reliability, ease of use, and suitability for small-space makers.

Shapeoko 5 Pro and Nomad

Carbide 3D offers two distinct approaches to desktop CNC: the Shapeoko 5 Pro for makers with some space, and the Nomad for those with virtually none.

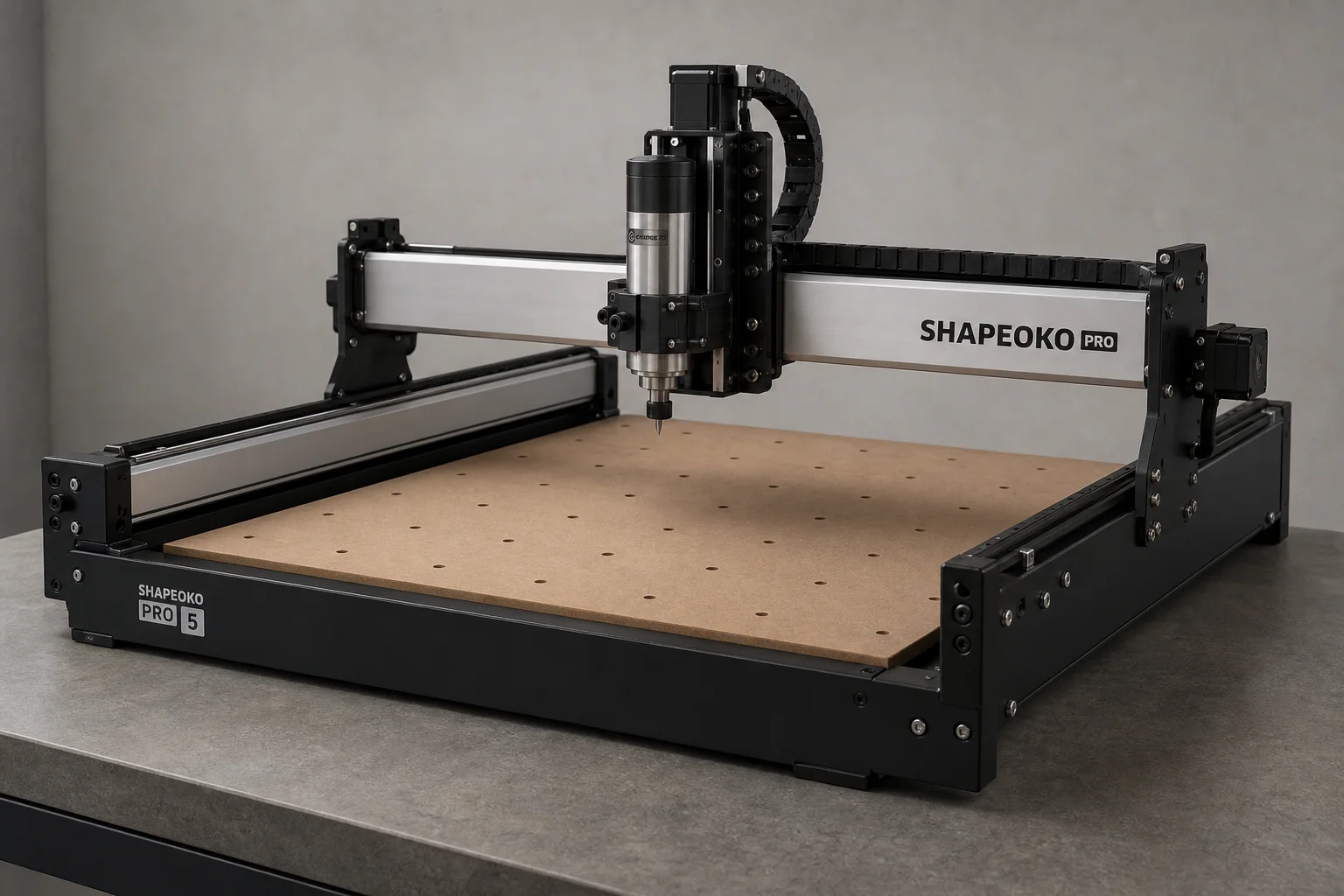

The Shapeoko 5 Pro comes in multiple sizes, including 4x4 and 4x2 configurations. The 4x2 model is particularly useful if you have wall space but limited depth in your garage, since you can tile projects across multiple passes. The machine arrives mostly assembled and requires a few hours of setup. It includes dust collection, a bit setter, and access to Carbide Create software plus free training through my.carbide3d.com. The included software is capable enough to design and cut complex projects like furniture without requiring paid upgrades.

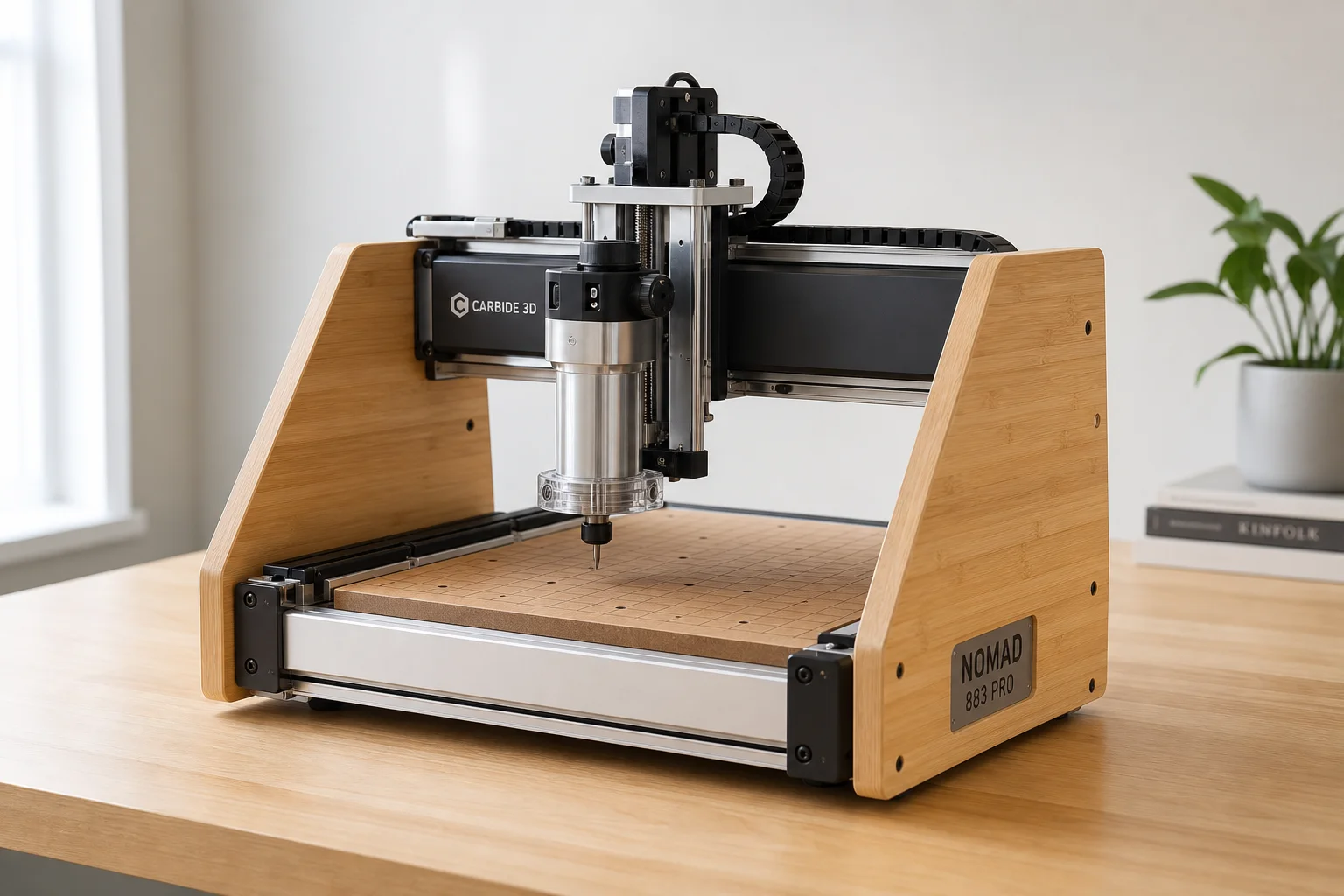

The Nomad is a true desktop machine that arrives fully assembled and ready to use immediately after unboxing. It’s designed for makers in apartments or studios with minimal space. Despite its compact footprint, the Nomad can cut wood, aluminum, and other materials with high precision. It’s available in multiple finishes including bamboo, white, grey, and black. Like the Shapeoko, it benefits from Carbide’s comprehensive training resources and community support.

NextWave CNC HD510 and HD520

NextWave CNC manufactures machines ranging from 1x1 to 4x4 cutting bases, with the HD510 and HD520 representing popular mid-range options for small shops.

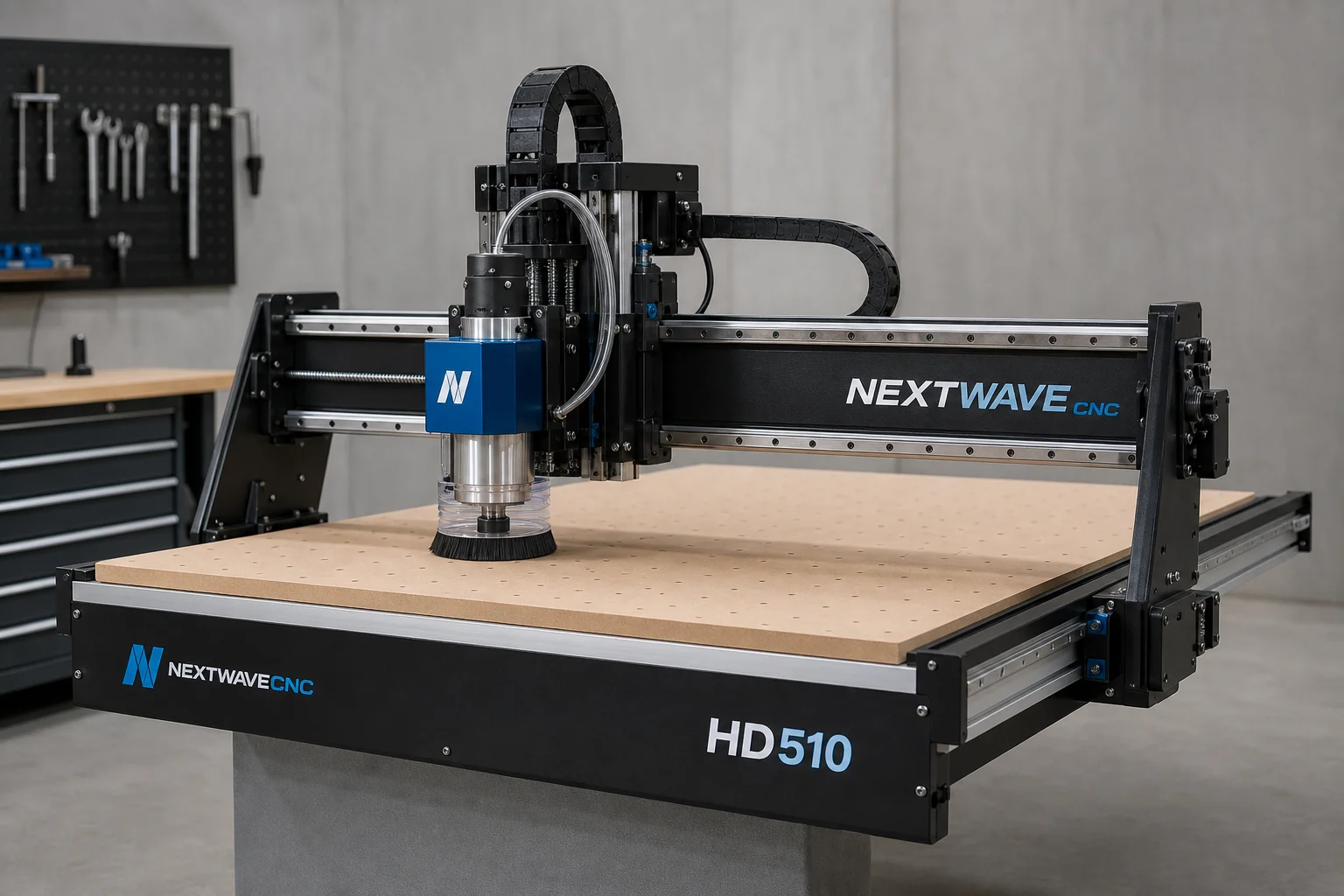

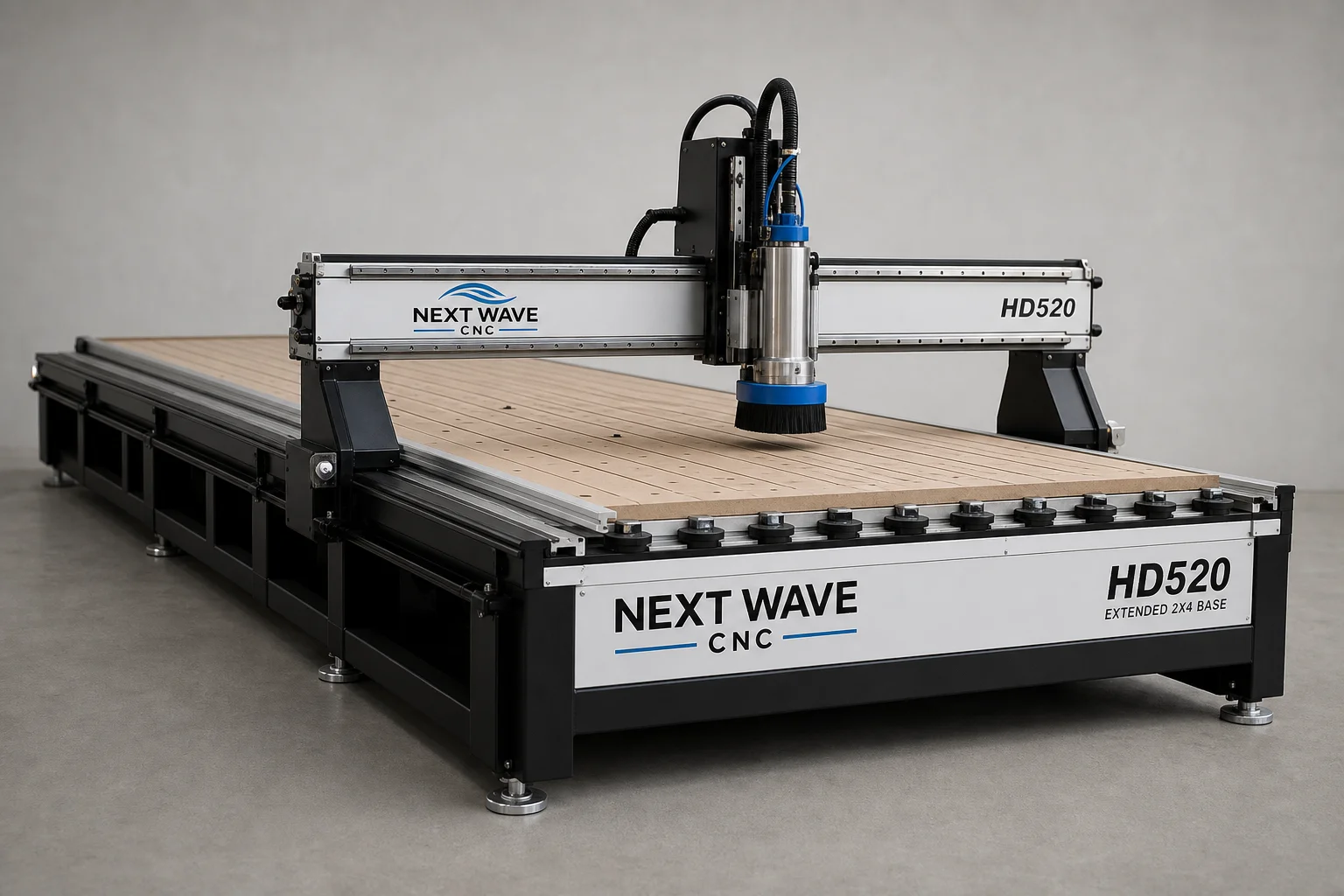

The HD510 features a 2x2 cutting base with a water-cooled spindle and includes a new dust boot compatible with 80mm spindles. It comes with a 24x4 vacuum pod and various accessory options. The machine is one of NextWave’s best sellers and fits comfortably in any garage. The HD520 doubles the cutting length to 2x4, making it suitable for longer projects while maintaining the same footprint depth.

NextWave’s newest flagship is their 4x4 machine, which achieves rapid speeds up to 800 inches per minute with plans to reach 1,000 soon. It includes a three-horsepower spindle and comes with a 10.1-inch pendant upgrade standard. The machine features a closed-loop motor system that stops immediately if it encounters resistance, preserving your position in the file so you can finish without scrapping material. This is a significant advantage over traditional open-loop systems. The 4x4 uses an open table concept with a 50x50-inch cutting base and 7 inches of Z travel. Software is Vectric Vcarve, and you’ll need to source your own spoilboard and table, though NextWave provides guidance on building a custom table.

Onefinity Foreman and Journeyman

Onefinity offers the Foreman (4x4) and Journeyman (32x48 and 32x32) machines, both featuring closed-loop stepper motors and modular design philosophy.

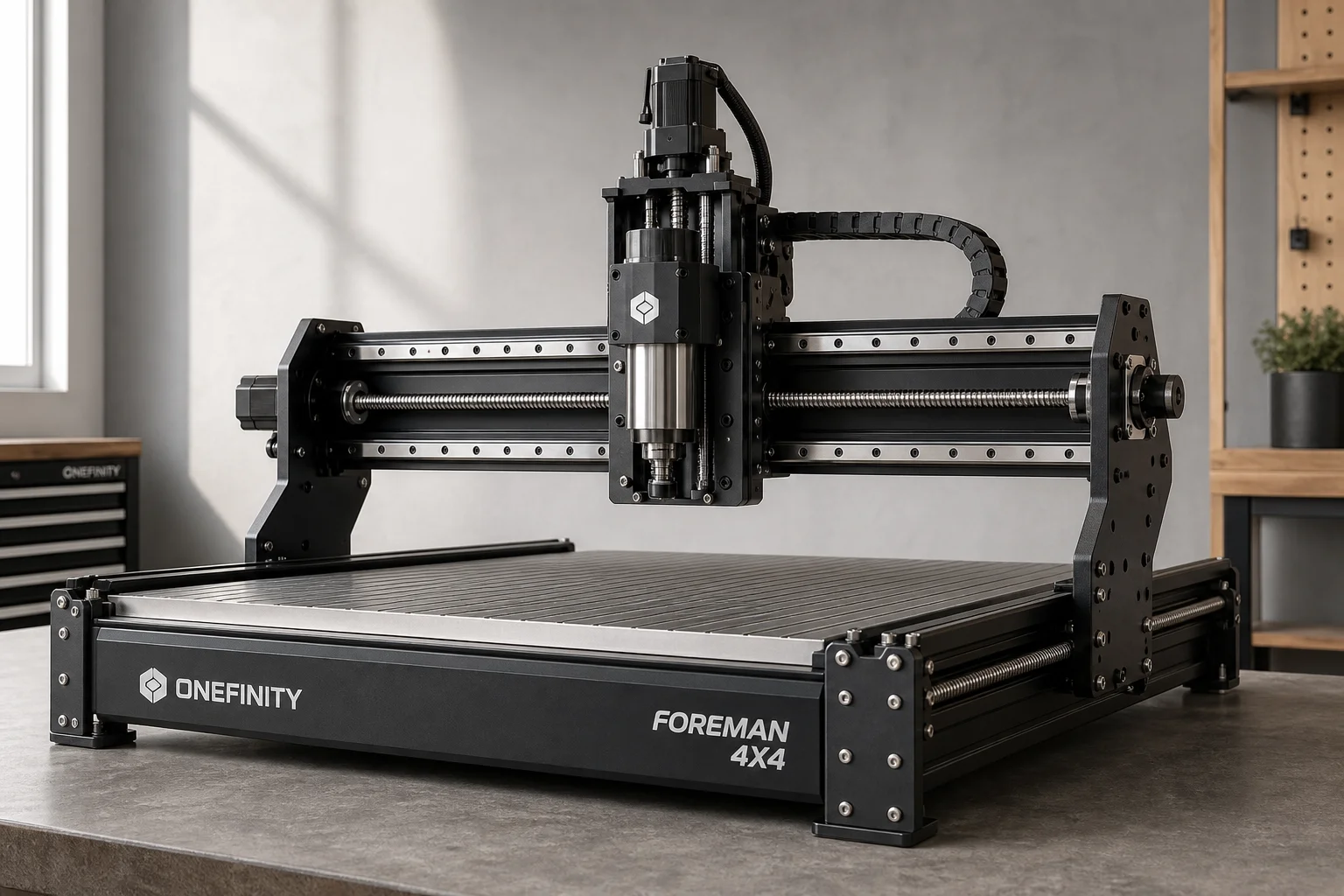

The Foreman Elite includes a full 48x48-inch cutting capacity with closed-loop stepper motors that constantly communicate with the controller. If power fails or the machine encounters an obstacle, it can return to the exact position and resume without ruining your work. The machine uses a 1.5kW air-cooled spindle from Redline CNC as the officially supported option. The Journeyman comes in 32x32 and 32x48 configurations for makers who need more cutting area.

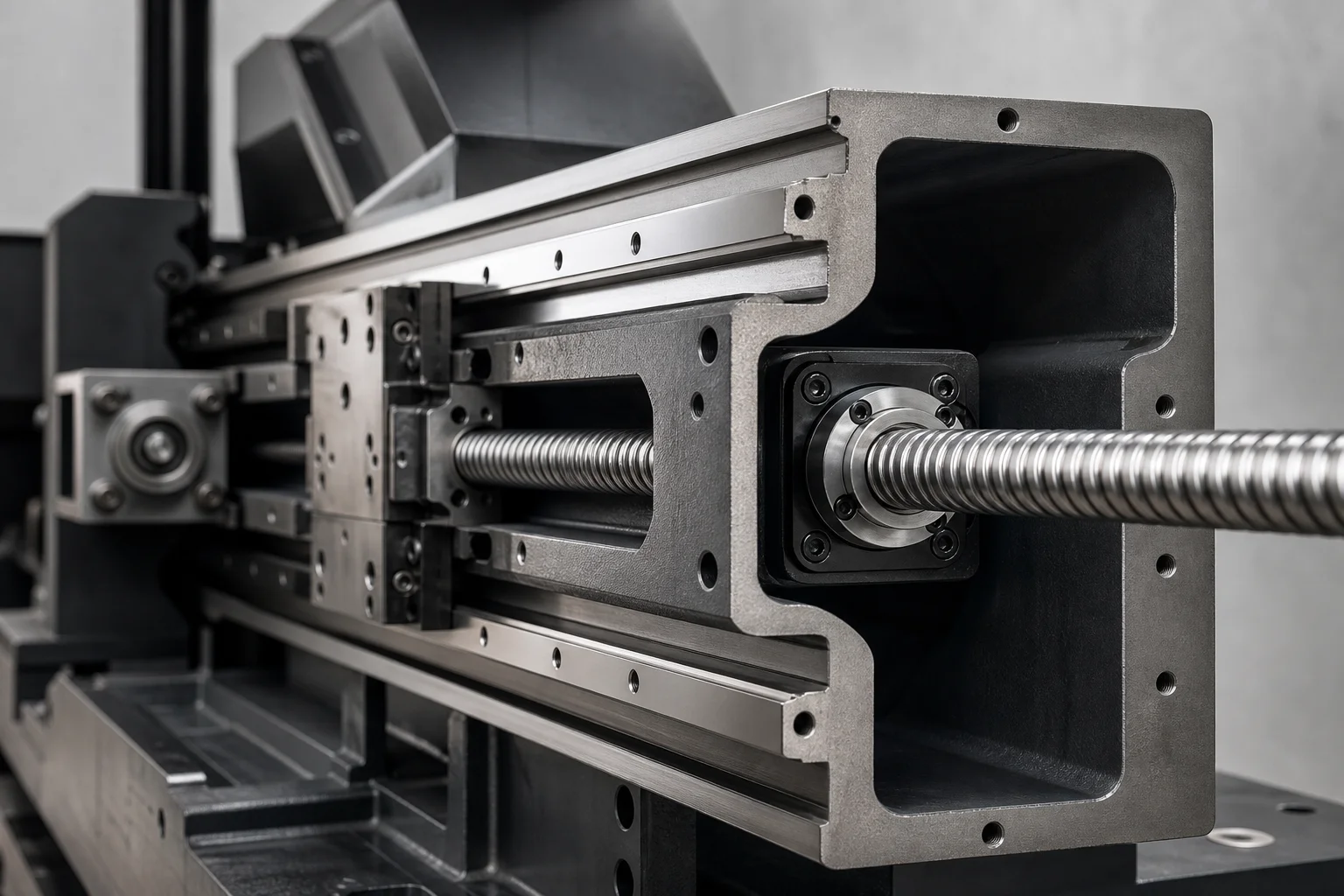

Onefinity’s machines feature notably rigid construction with 7mm-thick-walled steel rails that resist deflection, paired with ball screws rather than belt drives for precision and durability. The company recently introduced a new Full Eight accessory that transforms the 4x4 Foreman into a functional 4x8 machine. The bed automatically moves when the code reaches a tiling point, allowing continuous cutting across the full 4x8 area without manual repositioning. This accessory is available as an add-on to existing machines, making it an affordable upgrade path.

The new Redline controller features a matte screen (not glossy) with 3D rendering of your workpiece and cutting path. Everything runs on the controller itself without requiring a connected laptop. A thumb drive loads files directly, and the interface displays your exact work piece and predicted cut results. The machine also supports optional accessories including a J-Tech diode laser available in 24, 44, and 64-watt configurations. The 64-watt laser cuts through 0.5-inch material in a single pass at 50 inches per minute. A rotary attachment is available for cylindrical work and is compatible across all Onefinity machine generations.

Choosing the Right Machine for Your Space

The Shapeoko 5 Pro suits makers who want a proven, complete system with excellent software and training resources. The 4x2 is ideal if wall space is your limiting factor. The Nomad is the only choice if you truly have minimal space and need something that works immediately out of the box.

NextWave machines appeal to small shops that need reliability and precision without excessive cost. The HD510 and HD520 fit standard garage dimensions, while the 4x4 offers significant capacity with the closed-loop motor advantage.

Onefinity machines are best for makers who value modularity and plan to expand over time. The Foreman with the new Full Eight accessory offers a unique path to 4x8 capacity in a residential space. The Journeyman suits shops with more dedicated space. All Onefinity machines benefit from an active user forum where customers help troubleshoot and share techniques.

Conclusion

Each of these six machines addresses different space constraints and budgets. Whether you’re starting with a compact desktop system or planning a modular setup that grows with your business, the current market offers genuine options that work in small shops and garages without compromise on precision or capability.
